Thermoelectric Separation Metal PCB

Thermoelectric Separation Metal PCB

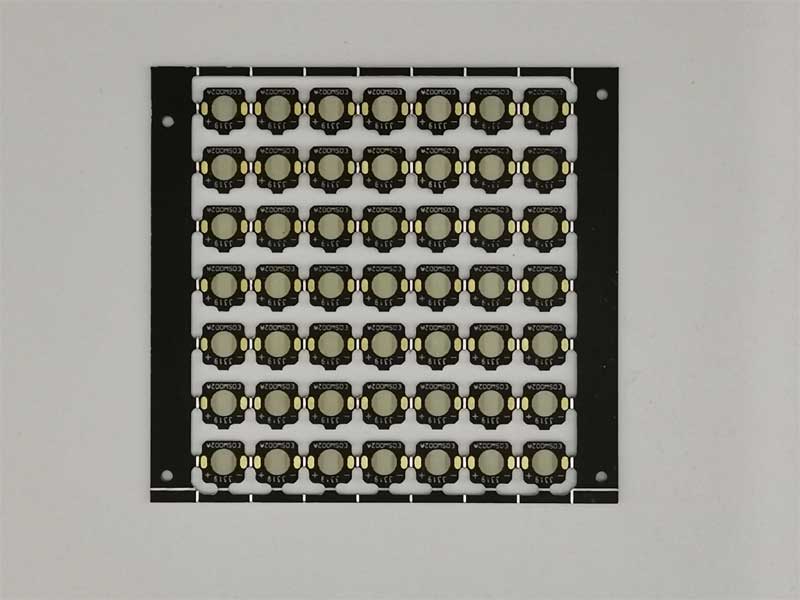

The thermal conductivity of the thermoelectric separation copper substrate is 398W/M.K, which overcomes the shortcomings of insufficient heat conduction and heat dissipation of the existing copper substrate. This process directly conducts the heat generated by the electronic components through the heat dissipation area, which greatly improves the heat dissipation effect.

Blog
  • What is FPC Solder Mask?

    The most commonly used solder resist is the green ink, which is therefore called solder dam. Solder resist is a "separation area" made to prevent short circuit of SMD component pins in the s...

    Read More >
Contact Us

Parameters of Thermoelectric Separation Metal PCB


Number of layers: 1

Plate thickness: 2.0±0.10 mm

Plate: high purity red copper

Minimum aperture: 2.0mm

Surface treatment: silver plating

Outer copper thickness: 35um

Silver thickness: ≥3um


Characteristics of Thermoelectric Separation Metal PCB


Separation of power layer and heat dissipation layer, copper base and highly reflective silver plating.


Advantages of Thermoelectric Separation Metal PCB


1. Selected high purity metal materials and imported heat conductive PP adhesive

The copper plate with purity of 99.8% copper and imported Laird thermal conductive adhesive are used to ensure the thermal conductivity of copper based PCB. The strict incoming inspection process ensures that indexes of each material are within the qualified range.


2. Advanced production equipment ensures the reliability and processing accuracy of copper based/aluminum based circuit board

Advanced laminating equipment, automatic V-cutting machine, laser exposure machine and other processing and testing equipment ensure the processing accuracy of lines and holes. Advanced long arm thickness gauge, two-dimensional measuring instrument and other testing equipment ensure that the overall dimensions of each PCB produced are in perfect fit.


3. Excellent craftsmanship

We can process copper based/aluminum based circuit boards with various technological characteristics such as double-sided and multi-layer copper substrate, copper based transfer process and thermoelectric separation process.


Processing fields of Thermoelectric Separation Metal PCB


Automotive power control module, AC converter, dimming system, igniter, DC-AC converter, switch regulator, solid state relay, rectifier bridge, high power LED, etc.


Do you need a thermoelectric separation metal PCB? We offer our customers high-quality thermoelectric separation metal PCBs and the best service. Please do not hesitate to ask for information if you need it. And if you have questions about our PCB production capacity, or the specifications required for your custom project are not listed on this page, please feel free to contact us. We will reply within one workday. We will continue to provide quotation support and design support. Welcome to learn about our production process.
