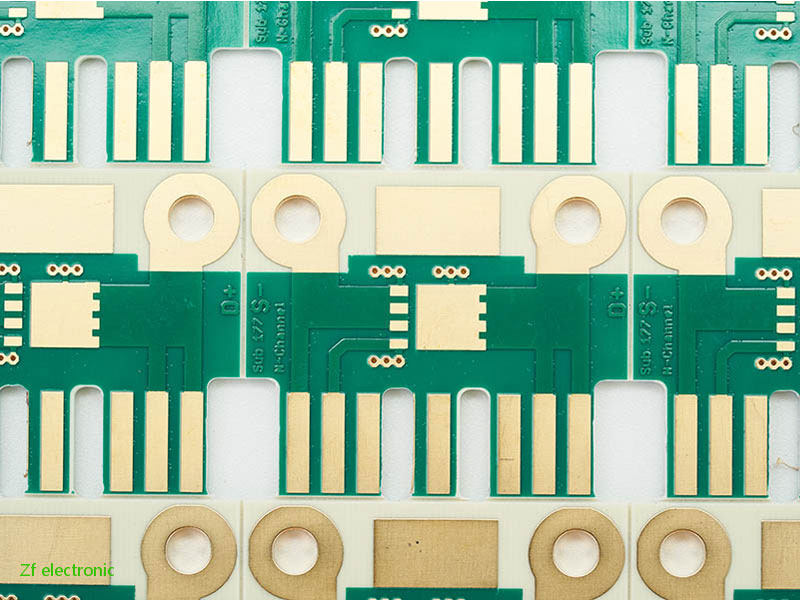

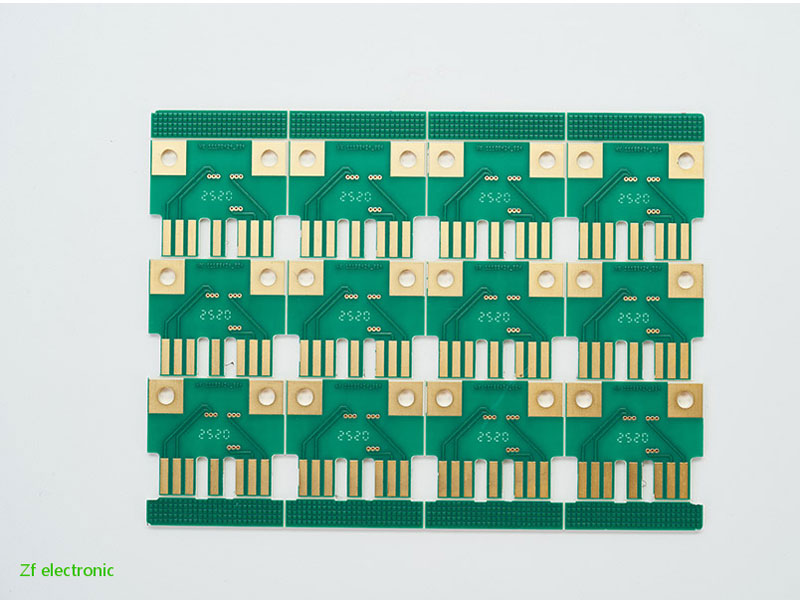

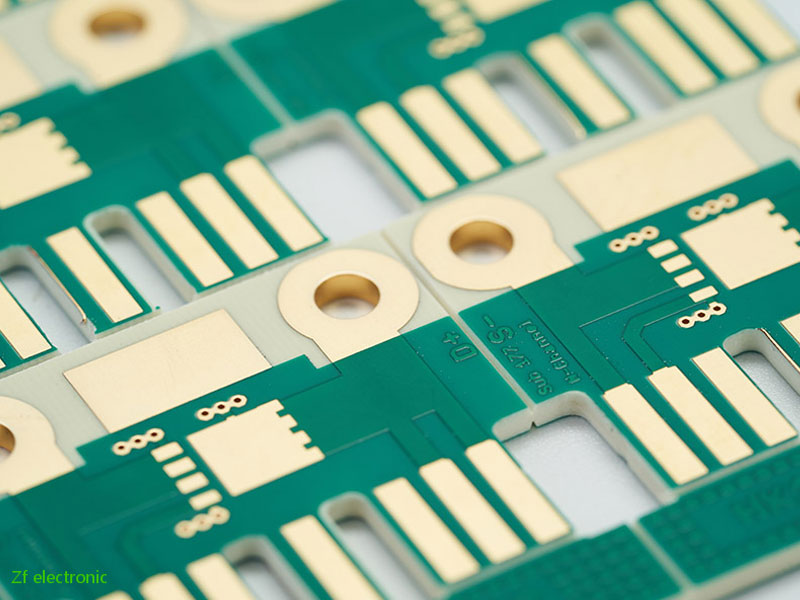

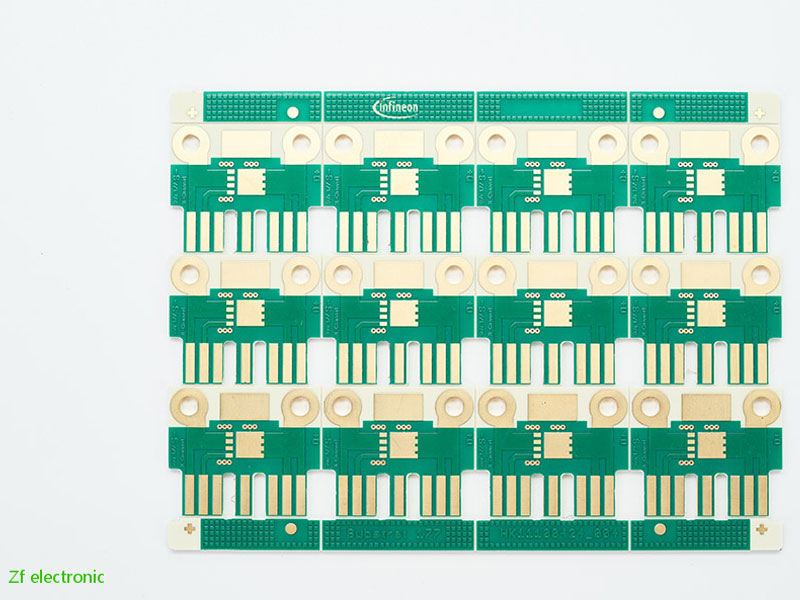

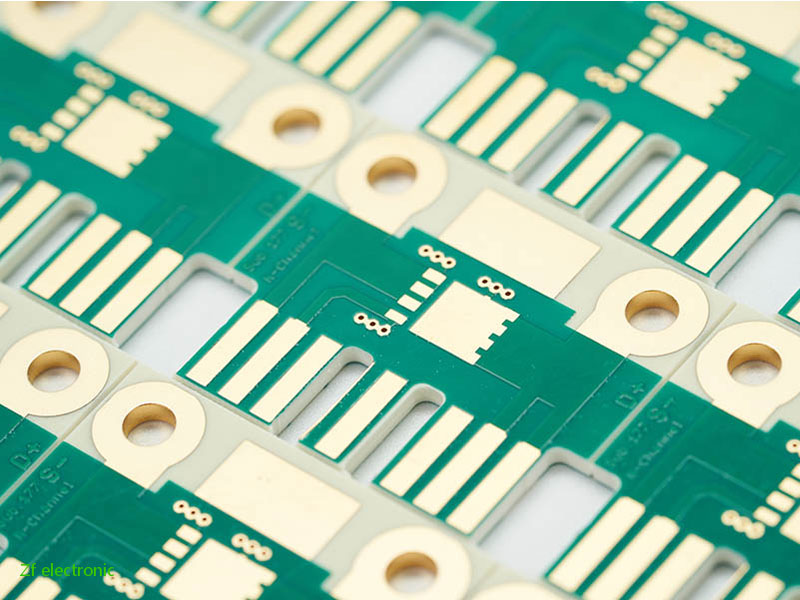

Rogers PCB

With the development of electronics, the production of electronic products also requires more and more materials, such as high-frequency materials. Rogers PCB is a type of high-frequency board, which differs from conventional FR4 PCB that there are no glass fibers between them, which are ceramic-based high-frequency materials.



Blog
  • Why is the Color of PCB Mostly Green?

    The color of PCB surface is actually the color of solder resist, which can prevent the wrong soldering of components, prolong the service life of devices, and prevent the oxidation and corrosion of de...

    Read More >
Contact Us

Advantages of Rogers PCB


  • Rogers PCB boasts superior dielectric constant and high temperature stability, and its dielectric constant thermal expansion coefficient is consistent with copper foil, which can be used to improve the deficiencies of PTFE substrates;

  • Rogers PCB is suitable for high-speed design, as well as commercial microwave and radio frequency applications.

  • Due to its low water absorption, it can be used as an ideal choice for high-humidity applications, providing customers in the high-frequency board industry with the highest quality materials and related resources, and fundamentally controlling product quality.


Application of Rogers PCB materials


When the circuit frequency is higher than 500MHz, the range of materials available to the design engineer is significantly reduced.


  • Cellular base station antenna and power amplifier

  • P2P

  • Automotive radars and sensors

  • RFID tags


Rogers PCB material ceramic high-frequency board series classification


1. RO3000 series

Based on ceramic filled PTFE circuit material.

Models: RO3003, RO3006, RO3010, RO3035 high-frequency laminates


2. RT6000 series

Ceramic filled PTFE circuit material designed for high dielectric constant electronic and microwave circuits.

Models: RT6006 dielectric constant 6.15/RT6010 dielectric constant 10.2.


3. TMM series

Composite materials based on ceramics, hydrocarbons, thermoset polymers

Models: TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i.


If you have questions about our Rogers PCB production capacity, or the specifications required for your custom project are not listed on this page, please feel free to contact us. We will reply within one workday. We will continue to provide quotation support and design support.
